Mr. Steam SAH4500R2401 Steam@Home 4.5kW Steam Shower Generator – 240V 1-Phase, Up to 110 cu. ft.
Mr. Steam SAH4500R2401 Steam@Home 4.5kW Steam Shower Generator – 240V 1-Phase, Up to 110 cu. ft.
Couldn't load pickup availability
Share

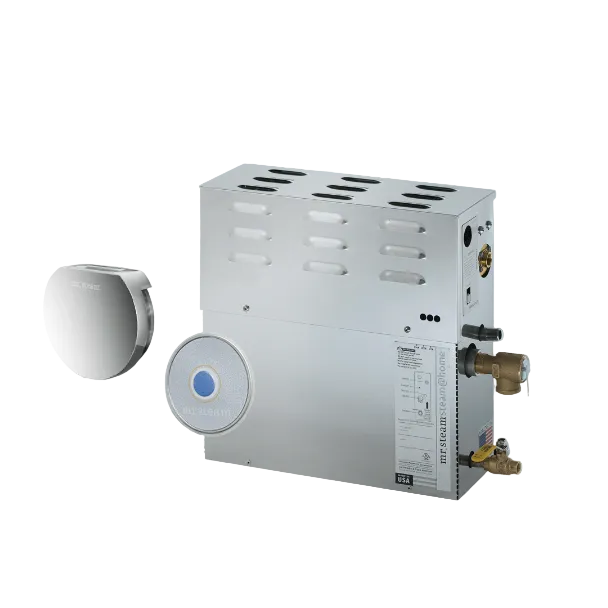

The Mr. Steam SAH4500R2401 is a 4.5 kW, 240-volt single-phase residential steam shower generator from the Steam@Home line, rated for steam rooms up to 110 cubic feet.
Steam@Home is a smaller, affordable configuration with the same luxury experience. Just big enough to fit everything you want in a steam shower. Invigorate and revitalize every day in a personal steam bath right in your own home. Whether remodeling a bathroom, building a new home or simply retrofitting an existing shower, a Steam@Home steam bath can transform most bathrooms into a personal wellness spa.
Key Features
- 60 minute automatic cutoff, low voltage board, designed for easy access safe service
- Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
- Exclusive micro processor operating system is the brains of our intelligent steam generator
- Free from defects in materials and craftsmanship for its lifetime. Mr. Steam will repair or replace (at its option) a Generator which fails to conform to this warranty
- Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
- LED indicators to help you troubleshoot any connection and maintenance challenges
- Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
- Reliable, industrial grade, and the industry's largest copper heating element heats fast and is easy to remove and service
- US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety
Specifications
| Model / MPN | SAH4500R2401 |
|---|---|
| Series / Collection | Steam@Home |
| UPC | 767931956591 |
| Power | 4.5 kW (4,500 W) |
| Voltage | 240 V |
| Phase | Single phase |
| Amperage | 19 A |
| Max steam room size | 110 cu. ft. |
| Time to steam | 15 minutes |
| Water inlet / steam outlet | 3/8 NPT Water Inlet | 3/4 NPT Steam Outlet |
| Drain connection | 1/2 NPT |
| Material | Stainless Steel |
| Dimensions (W x D x H) | 21" x 11" x 16" |
| Product weight | 20 lb |
| Installation | Wall mount; Floor mount, Hardwired |
| Certifications | cULus, CE |
| Country of origin | United States |
| Shipping method | Parcel |
| Warranty | Limited 1-Year Warranty (US & Canada) |
Sizing Your Steam Room
Generator coverage is Mr. Steam's maximum recommended room volume. Rooms with stone or tile over concrete, glass walls, high ceilings, or exterior walls need more steam, so the adjusted volume can be well above the measured cubic feet. Not sure which size you need? Contact us with your room dimensions and wall materials and we'll help you choose.
Warranty
Limited 1-Year Warranty (US & Canada). Mr. Steam® warrants that every Steam@Home® Residential Steambath Generator (“Generator”) will be free from defects in materials and workmanship. Mr. Steam will repair or replace (at its option) a Generator which fails to conform to this warranty. If the warranty claim is made within 90 days from the date of purchase of the Generator, Mr. Steam will provide free in-home warranty service, parts and labor. If the warranty claim is made within one year from the date of purchase of the Generator, Mr. Steam will provide a warranty on parts. To obtain warranty service, please call 1-800-76-STEAM.
Manuals & Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Steam shower planning guide (PDF)
- Warranty (PDF)
Shipping & Support
Ships directly from the manufacturer.
Questions about sizing, wiring, or compatibility? Contact Meridian Home Spa at support@meridianhomespa.com — we're happy to help.
